Tactile Indicators: Buying Guide For Architects

The architectural landscape is evolving toward a more inclusive future where accessibility is no longer a secondary consideration but a core design principle. For architects and contractors, integrating Tactile Indicator Studs is a critical component of satisfying both legal requirements and ethical obligations to the visually impaired community. These ground surface indicators provide essential sensory information through physical texture and high-contrast visuals, ensuring that urban environments remain navigable for everyone.

Tactile indicators, specifically Tactile Indicator Studs, are specialized floor surface treatments designed to provide cues to individuals with vision impairments. These indicators use raised profiles to signal changes in direction, potential hazards, or the presence of public transport boarding points. When buying these products, architects must prioritize slip resistance, material durability, and adherence to international accessibility standards such as ISO 23599 or specific local regulations like the ADA or AS/NZS 1428.4.1.

Navigating the procurement process for these safety components requires a deep understanding of material science and installation logistics. Choosing the wrong material or a non-compliant design can lead to costly retrofits and potential legal liabilities. This guide provides a comprehensive overview of how to select the best Tactile Indicator Studs for your next commercial or public infrastructure project.

Article Overview

What are Tactile Indicators?

Tactile indicators are standardized floor surface indicators that use raised studs or bars to provide pedestrians with sensory information via their feet or white canes.

In the context of modern architecture, Tactile Indicator Studs serve as a critical language of the built environment. They are more than just bumps on the ground; they are a sophisticated system of communication that bridges the gap between the physical structure and the sensory needs of the visually impaired. By creating a predictable pattern of textures, these indicators allow users to anticipate hazards such as road crossings, staircases, or platform edges.

Architects must view these products as essential safety infrastructure. When integrated correctly into a design, Tactile Indicator Studs contribute to a seamless flow of traffic while maintaining a high safety threshold. The geometry of the studs is strictly regulated to ensure they are detectable without becoming a trip hazard for those with limited mobility or those wearing high-heeled shoes.

From a technical perspective, these indicators are often referred to as Tactile Ground Surface Indicators (TGSI). They are typically manufactured from high-durability materials like 316-grade stainless steel, brass, or specialized polymers to withstand heavy foot traffic and environmental stressors. Understanding the nuances of their design—such as the diameter of the stud and the spacing between them—is fundamental for any professional involved in the construction of public spaces.

Types of Tactile Indicators

There are two primary categories of tactile indicators: Warning Tactile Indicators (often called Hazard Tactiles) and Directional Tactile Indicators (often called Leading Tactiles).

Warning Tactile Indicators are the most common type found in urban settings. These consist of a grid of raised studs, often referred to as "blisters." Their primary function is to signal a "stop" or a "caution." When a visually impaired individual encounters these Tactile Indicator Studs, it informs them that they are approaching a hazard, such as a drop-off at a train platform, the beginning of a staircase, or a transition into a roadway.

Directional Tactile Indicators, on the other hand, consist of raised bars or strips. These are used to provide a "path of travel" across large open spaces where there are few other cues for orientation. For example, in a large airport terminal or a vast public square, Directional Tactile Indicator Studs guide users toward specific points of interest like information desks, exits, or ticket counters.

Choosing between these types depends entirely on the specific requirements of the site. A well-designed accessibility plan will often use a combination of both. Warning studs act as the "punctuation marks" of the environment, while directional bars act as the "sentences" that guide the user safely from point A to point B. Contractors must ensure that the transition between these two types is logical and follows regulatory spacing guidelines.

Stainless Steel Tactile vs Other Materials

When comparing materials, Stainless Steel Tactile Indicator Studs offer the highest levels of durability, aesthetic appeal, and long-term cost-effectiveness compared to plastic, rubber, or ceramic alternatives.

In high-traffic commercial zones, the choice of material is paramount. Plastic or rubber tactiles are often chosen for their low initial cost, but they frequently suffer from UV degradation, cracking, and loss of slip resistance over time. In contrast, Tactile Indicator Studs made from 316-grade stainless steel are resistant to corrosion and maintain their structural integrity even in harsh coastal or industrial environments.

Ceramic and concrete tactiles are another option, often integrated directly into the paving. While they offer a traditional look, they are susceptible to chipping and can be difficult to replace if damaged. Stainless steel studs, particularly those with a mechanical fixing stem, provide a "cleaner" installation that integrates seamlessly with modern stone, tile, or timber flooring without the risk of the surrounding material fracturing.

The performance of different materials can be summarized as follows:

Why Stainless Steel Wins Every Time?

Stainless steel is the preferred choice for architects because it combines structural resilience with a sleek, modern finish that complements high-end architectural designs.

1. Unmatched Corrosion Resistance: Using 316-grade stainless steel ensures that the Tactile Indicator Studs will not rust or tea-stain, even when exposed to salt spray or chemical cleaning agents used in public facilities.

2. Superior Wear Resistance: Unlike polymers that wear down under heavy foot traffic, stainless steel maintains its profile height, ensuring it remains detectable and compliant for decades.

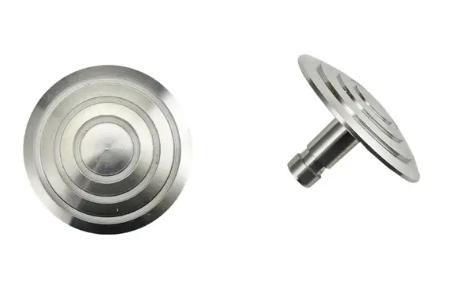

3. High Slip Resistance Ratings: Most premium stainless steel studs feature a machined concentric ring pattern or a grit-filled top, providing an R11 to R13 slip rating, which is essential for wet-weather safety.

Designing with stainless steel also provides a level of design flexibility. These studs can be installed as individual units, allowing the beauty of the underlying floor finish to remain visible between the studs. This "discrete" look is highly favored by interior designers who want to achieve accessibility compliance without compromising the visual flow of a lobby or gallery.

Key Factors to Consider While Buying Tactile Indicators

The most critical factors to evaluate when purchasing Tactile Indicator Studs include the slip resistance rating, the method of installation, and the luminance contrast against the substrate.

Luminance contrast is perhaps the most overlooked technical requirement. For a tactile indicator to be effective, it must be visually distinct from the floor it is placed on. Most regulations require a minimum of 30% to 45% luminance contrast. This means if you are installing Tactile Indicator Studs on a light-colored granite floor, you may need black PVD-coated stainless steel or brass to ensure the studs are visible to those with low vision.

The physical dimensions of the studs are also strictly governed. A standard Tactile Indicator Stud typically has a base diameter of 35mm and a top diameter of 25mm, with a height of approximately 4mm to 5mm. Buying products that deviate from these standards can lead to a site being declared non-compliant during a final building inspection, causing massive delays in project handover.

Finally, consider the environmental impact and the maintenance schedule. Stainless steel is 100% recyclable, making it a sustainable choice for green building projects. From a maintenance perspective, it requires nothing more than occasional cleaning with soapy water, unlike adhesive-backed plastic tiles that often peel at the edges and collect dirt and bacteria, creating both a hygiene and a trip risk.

Where Should Tactile Indicators be Installed?

Tactile indicators must be installed at all points where a pedestrian transition involves a change in level or a potential entry into a hazardous zone, such as stairs, ramps, escalators, and curbs.

In commercial buildings, the most common installation point is at the top and bottom of every flight of stairs. The Tactile Indicator Studs should be set back from the edge of the stair nosing (typically 300mm) to give the user enough time to stop before reaching the first step. Similarly, at the base of the stairs, they signify that the user has reached level ground.

Public transport hubs are another primary location. Here, Tactile Indicator Studs are used along the entire length of a platform to create a safety "buffer zone." They are also used at the entrance to ramps and at the transition between a sidewalk and a driveway. In internal environments, they should be placed in front of elevator doors and at any point where a pedestrian path crosses a vehicle path, such as in a large underground parking garage.

Proper placement is not just about safety; it is about providing a consistent "map" for the user. If tactiles are used inconsistently within a single building, they can become confusing rather than helpful. Architects should work closely with accessibility consultants to map out a logical path of travel that utilizes Tactile Indicator Studs at every decision point, ensuring that the visually impaired user is never left without a cue.

Common Buying Mistakes to Avoid

The most frequent mistakes made when procuring Tactile Indicator Studs include prioritizing price over quality, failing to check for compliance certificates, and choosing the wrong installation method for the substrate.

One of the biggest pitfalls is "over-specification" or "under-specification" regarding the fixing method. For example, using "peel-and-stick" tactiles in a high-traffic outdoor area is a recipe for failure. Within months, the adhesive will fail, and the studs will become loose, creating a significant trip hazard. Conversely, attempting to drill holes for "stemmed" studs into toughened glass or delicate thin-set porcelain without the right equipment can lead to expensive material breakage.

Another error is ignoring the "total cost of ownership." While plastic tactiles are cheaper upfront, the labor costs associated with replacing them every three years far outweigh the one-time investment in high-quality Tactile Indicator Studs. Architects must educate their clients on the long-term value of durable materials that won't require constant maintenance or replacement.

Finally, many buyers fail to account for the "tactile layout." Buying the studs is only half the battle; they must be installed in a very specific grid pattern (typically 50mm or 60mm center-to-center spacing). If the contractor does not have a professional installation template, the final result will be messy, non-compliant, and aesthetically unpleasing.

Buying Non-Standard Sizes

Purchasing Tactile Indicator Studs that do not meet the standard height or diameter requirements is a critical error that can lead to legal non-compliance and safety risks.

1. Height Issues: If a stud is too high (e.g., 6mm+), it becomes a trip hazard for elderly pedestrians or those with mobility aids.

2. Diameter Issues: If the top surface is too small, it provides insufficient tactile feedback to a white cane or a shoe sole.

3. Edge Profiles: Non-standard studs often have sharp edges rather than a chamfered (beveled) edge, which can damage footwear or cause injuries during a fall.

Standardization exists for a reason: it creates a universal language. When an architect specifies non-standard Tactile Indicator Studs, they are essentially "misspelling" the safety cues for the user. Always verify that the product dimensions align perfectly with the local building code (e.g., ADA, BCA, or EN standards).

No Compliance Certificate

Never purchase Tactile Indicator Studs from a supplier that cannot provide a valid compliance certificate or independent test results for slip resistance and luminance contrast.

A certificate of compliance is your legal shield. If an accident occurs on-site and a claim is made, the first thing investigators will look for is whether the installed safety products met the required standards. A reputable supplier will have their Tactile Indicator Studs tested by a third-party laboratory to verify their "P" (Pendulum) or "R" (Ramp) slip rating.

Without this documentation, the architect and the contractor are taking on immense professional liability. It is not enough for a supplier to "claim" their product is compliant; they must prove it with data. Ensure the certificates are current and specific to the exact batch or model of Tactile Indicator Studs you are purchasing.

Ignoring the Fixing Method

Choosing a fixing method that is incompatible with the floor substrate will result in product failure, either through the studs coming loose or the flooring becoming damaged.

1. Stemmed Studs: These require drilling a hole and are best for concrete, stone, or timber. They offer the most permanent and secure bond.

2. Flat-Back Studs: These are glued directly to the surface. They are ideal for substrates that cannot be drilled, such as thin tiles over waterproof membranes or glass.

3. Pressure Sensitive Adhesive (PSA): Only suitable for very low-traffic, indoor temporary applications.

Architects must specify the fixing method in the tender documents. For example, if the project uses 20mm thick granite pavers on a pedestal system, a stemmed Tactile Indicator Stud might require a specific length of stem to ensure it doesn't interfere with the support structure.

Buying Without Technical Support

Procuring Tactile Indicator Studs from a general hardware vendor rather than a specialist supplier often leads to installation errors and poor project outcomes.

Specialist suppliers provide more than just the product; they provide installation templates, technical drawings, and guidance on luminance contrast calculations. They understand the intricacies of how Tactile Indicator Studs interact with different surfaces and can advise on the best adhesives or drill bits for the job.

When you buy without technical support, you are left to figure out the spacing and alignment on your own. This often leads to "grid drift," where the rows of studs slowly become crooked over a long distance, ruining the architectural symmetry of the space. A specialist will provide the tools necessary to ensure a perfect, professional finish every time.

Final Buying Checklist for Architects and Contractors

To ensure a successful installation, use this final checklist before finalizing your order of Tactile Indicator Studs.

Before the order is placed, confirm the following points:

• Material: Is it 316-grade stainless steel for longevity?

• Compliance: Does the supplier provide a slip-resistance test certificate (e.g., P5 rating)?

• Luminance Contrast: Have you checked that the color of the Tactile Indicator Studs provides at least 30% contrast against the flooring?

• Fixing Method: Is the stem length or adhesive type compatible with your specific floor substrate?

• Quantity and Spacing: Have you calculated the quantity based on standard grid spacing (typically 400 studs per square meter)?

• Installation Tools: Does the order include a precision drilling template to ensure straight rows?
