Safety Standards of Tactile Indicators
Tactile Indicator Studs and Intermediate Landings
Material Selection for Maximum Durability
Installation Patterns and Spacing Requirements
The Role of Luminance Contrast in Stairway Safety
Maintenance and Long-term Performance
Safety standards for Tactile Indicator Studs ensure that these safety devices are uniform in height, diameter, and spacing, allowing visually impaired users to recognize the warning signal consistently across different buildings and geographic locations.
The primary objective of international safety standards, such as ISO 23599 and the Americans with Disabilities Act (ADA) Standards for Accessible Design, is to create a predictable environment for those with sensory disabilities. When it comes to stairways, the standards dictate exactly how far from the first riser the Tactile Indicator Studs must be installed. Usually, this is a set distance of 300mm to 400mm from the edge of the stair nosing. This specific setback ensures that a person using a long cane or feeling the texture underfoot has enough reaction time to stop or adjust their gait before reaching the steps.

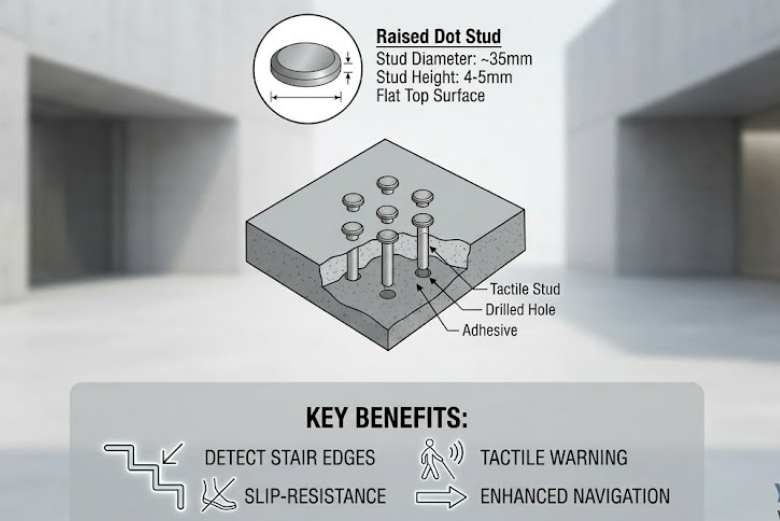

Compliance also extends to the physical dimensions of the individual studs. Standardized Tactile Indicator Studs typically feature a base diameter of 35mm and a top diameter of 25mm, with a height of approximately 4mm to 5mm. If the studs are too high, they become a tripping hazard for the general public; if they are too low, they cannot be easily detected by a cane or through the soles of shoes. Manufacturers must adhere to these tolerances strictly to ensure the product is legally compliant for use in public infrastructure projects, such as train stations, airports, and shopping malls.
Furthermore, these standards address the "Detectability" factor. This involves both the physical protrusion and the "Luminance Contrast." Standards often require a minimum of 30% luminance contrast compared to the surrounding surface. This means that if the floor is dark, the Tactile Indicator Studs should be light (such as stainless steel or yellow polymer), and vice versa. By following these rigorous safety standards, developers can mitigate the risk of accidents and potential legal liabilities while fostering a truly inclusive environment.
On intermediate landings within a stairway, Tactile Indicator Studs must be installed if the landing provides access to another floor or if the landing area is large enough that a visually impaired person might lose their orientation between flights of stairs.
The application of Tactile Indicator Studs on intermediate landings is often a point of confusion for installers. According to most building codes, if a landing is a simple "turn" landing with no other entry or exit points, tactile indicators may not be required if the handrails are continuous. However, in larger landings where there is a break in the handrail or where the landing leads to a doorway, the installation of Tactile Indicator Studs becomes mandatory. This alerts the user that they are not just on a flat surface, but are approaching another set of descending or ascending stairs.
The depth of the tactile warning zone on a landing is also critical. Typically, a "Warning" pattern of studs should cover a depth of 600mm across the width of the path of travel. This ensures that even someone with a long stride will step on the indicators at least once. When installing Tactile Indicator Studs on landings, it is vital to ensure that the studs do not impede the path of people who do not need them, while still providing a clear, unmistakable signal to those who do.
Moreover, the integration of Tactile Indicator Studs on landings helps in maintaining "Directional Awareness." In complex stairwell designs, such as those found in multi-level transit hubs, the tactile surface acts as a tactile map. The transition from a smooth landing surface to the raised Tactile Indicator Studs provides an immediate sensory feedback loop. This feedback is essential for navigating high-traffic zones where audio cues might be drowned out by ambient noise, making the physical presence of the studs the primary safety mechanism for the user.
Selecting the right material for Tactile Indicator Studs depends on the environment of the stairway, with stainless steel being the preferred choice for high-traffic or outdoor areas due to its superior wear resistance and aesthetic appeal.
When choosing Tactile Indicator Studs, the material determines the product's life cycle and maintenance needs. The most common materials include:
316 Grade Stainless Steel: Ideal for outdoor stairways or coastal environments, as it offers the highest resistance to corrosion and pitting.
Polyurethane (TPU): A cost-effective, flexible option often used for retrofitting indoor stairs, providing excellent slip resistance and a wide range of colors for luminance contrast.
Brass or Bronze: Often selected for high-end architectural projects where the aesthetic of the building requires a "warm" metallic finish, though it requires more frequent cleaning to prevent tarnishing.
In high-traffic commercial buildings, 316 stainless steel Tactile Indicator Studs are often the industry gold standard. These studs are machined with a concentric ring pattern or a cross-hatch design on the top surface to enhance slip resistance (often rated R11 or R12). Because they are individual studs, they can be drilled and glued into various substrates including concrete, timber, and stone. This versatility makes them a favorite for architects who want to maintain the beauty of the floor while meeting safety obligations.
Environmental factors also play a massive role in material selection. For instance, in an underground subway station, the Tactile Indicator Studs are subjected to heavy foot traffic, cleaning chemicals, and occasional moisture. In this scenario, a solid-bodied stainless steel stud with a long stem (spigot) is necessary to ensure the stud remains anchored to the floor despite the constant vibration and pressure. Choosing a sub-par material in such an environment would lead to the studs popping out, creating a new hazard instead of a safety feature.
Proper installation of Tactile Indicator Studs requires a precise grid or offset pattern that adheres to specific center-to-center spacing, ensuring that the tactile field is detectable and compliant with local accessibility laws.
The effectiveness of Tactile Indicator Studs is entirely dependent on the precision of their layout. Most international guidelines suggest a square grid pattern where the center-to-center spacing of the studs is between 50mm and 60mm. This density is calculated based on the average human foot size and the tip of a white cane. If the studs are spaced too far apart, a cane could slip between them without detection; if they are too close, they may feel like a solid, slippery mass rather than a textured warning surface.
The installation process usually involves the following steps:
Template Layout: Using a specialized drilling template to mark the exact center points for each stud.
Drilling: Creating holes in the substrate (concrete, tile, etc.) to a depth that accommodates the stud's stem.
Adhesive Application: Using high-strength epoxy or structural adhesive to secure the stem of the Tactile Indicator Studs into the hole.
Curing: Allowing the adhesive to set before the stairway is opened to pedestrian traffic.
Accuracy during the drilling phase is paramount. Even a slight misalignment in the grid can be visually jarring and may affect the tactile feedback provided to the user. Many professional installers use a "Tactile Template" made of stainless steel or plastic to ensure that every stud is perfectly aligned. For stairways, the tactile field should span the entire width of the stairs to ensure that no matter where a person approaches from, they will encounter the warning zone.
Luminance contrast refers to the difference in light reflected from the Tactile Indicator Studs compared to the surrounding floor surface, which is vital for users with partial sight to identify the hazard visually.
While the primary function of Tactile Indicator Studs is tactile (touch), the visual component is equally important for the millions of people worldwide who are "legally blind" but still have some level of functional vision. For these individuals, a bright yellow stud on a dark grey concrete floor, or a polished stainless steel stud on a dark marble floor, provides a clear visual "break" that signals a change in the environment. Most safety codes require a minimum contrast of 30% to 45% depending on whether the studs are a single color or integrated with a secondary color.
Achieving this contrast requires careful planning during the design phase. Architects must compare the Light Reflectance Value (LRV) of the flooring material with the LRV of the Tactile Indicator Studs. The formula for calculating this contrast is often referred to as the Bowman-Sapolinski equation. By ensuring high luminance contrast, the stairway becomes safer for elderly users and those with various visual impairments, significantly reducing the risk of "missed steps" at the top of a flight.
In cases where the floor material and the studs are too similar in color, "Integrated Tactile Indicators" can be used. These are studs that feature a colored insert (often black, yellow, or carborundum) inside a metal housing. This combination provides the durability of metal with the high-visibility colors of polymers. This hybrid approach is becoming increasingly popular in modern transit hubs where both aesthetic integration and high-performance safety are required.
Regular maintenance of Tactile Indicator Studs is essential to ensure they remain securely anchored and continue to provide the necessary slip resistance and tactile feedback over time.
Once Tactile Indicator Studs are installed, they are often forgotten, but like any architectural element, they require inspection. In high-traffic stairwells, the studs are subjected to thousands of footfalls daily, as well as the abrasive action of cleaning machines. Over time, the adhesive can degrade, or the studs themselves can wear down, losing their "top" texture. A regular maintenance schedule should include checking for loose studs, as a missing stud can create a "hole" in the warning pattern, potentially misleading a user.
Maintenance tips for Tactile Indicator Studs include:
Visual Inspections: Monthly checks to ensure no studs are missing or damaged.
Cleaning: Removing dirt and grime that can fill the gaps between studs, which reduces the tactile "feel" and can decrease slip resistance.
Surface Check: Ensuring the top of the stud hasn't become polished or smooth, which would compromise the R-rating (slip resistance).
If a Tactile Indicator Stud becomes loose, it must be replaced immediately. The hole should be cleaned of old adhesive before a new stud is bonded in place. For outdoor stairways, it is also important to check for "tea staining" or surface rust on stainless steel studs. While 316-grade steel is highly resistant, it still requires occasional cleaning with a mild detergent to maintain its luminance contrast and professional appearance. By committing to a proactive maintenance plan, facility managers can extend the life of their safety flooring and ensure the stairway remains compliant with all accessibility standards.
