The misapplication of tactile paving severely compromises pedestrian safety, disrupts tactile recognition for visually impaired navigators, introduces physical trip hazards, and undermines regulatory accessibility compliance across municipal and commercial infrastructure.
Section | Summary |
How is tactile paving interpreted by the visually impaired? | Examines the sensory mechanisms, foot-sole pressure detection, and long-cane interaction through which visually impaired individuals decode ground surface tactile patterns. |
The patterns of tactile paving | Details the geometric profiles, dimensional specifications, and functional classifications of warning and directional surface tactile indicators. |
Common Issues | Analyzes structural and layout errors, improper tactile profile selections, and installation failures that create confusion and safety hazards. |
Confusing tactile patterns | Focuses on the spatial disruption and cognitive disorientation caused by inconsistent pitch, irregular alignment, and mismatched tactile profiles. |
In-line Blister Paving and Offset Blister Paving | Compares in-line and offset blister geometries, detailing their specific functional roles at pedestrian crossings and transit platforms. |
Corduroy Paving and Directional Guidance Paving | Explains the technical differences between hazard warning corduroy profiles and continuous linear guidance surface tactile indicators. |
Applying tactile paving where it's not needed | Investigates the functional degradation, sensory clutter, and transit inefficiency caused by over-installing tactile indicators in non-hazardous zones. |
Using the wrong colour tactile paving | Evaluates luminance contrast requirements, visual impairment physics, and how inadequate color contrast renders tactile indicators ineffective. |
The negative impact of misapplied tactile paving | Summarizes the legal liabilities, physical injury risks, public infrastructure costs, and social exclusion caused by flawed tactile paving installations. |

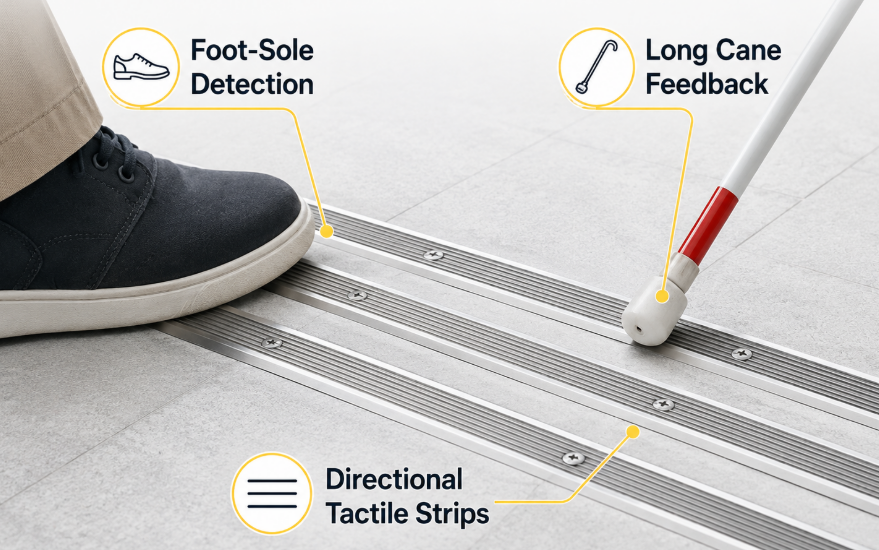

Visually impaired pedestrians interpret tactile paving through somatosensory feedback transmitted via foot-sole mechanoreceptors and kinetic vibrations generated through long-cane sweeps.
Tactile ground surface indicators operate as an essential non-visual communication system within public transit environments, streetscapes, and commercial buildings. The human foot contains specialized mechanoreceptors—specifically Meissner's corpuscles and Pacinian corpuscles—capable of detecting discrete changes in surface elevation, texture, and profile frequency. When a visually impaired individual steps onto a tactile surface, the mechanical deformation of the shoe sole transmits distinct pressure waves directly to these cutaneous receptors. This enables instant identification of specific tactile patterns, allowing the user to differentiate between directional guidance pathways and immediate hazard warnings without relying on visual cues.
Complementing foot-sole tactile transmission is the long cane, which serves as an extended sensory probe. As the cane tip sweeps across the ground, the mechanical resistance, resonance, and acoustic pitch produced by striking tactile elevated profiles yield critical spatial data. Raised truncated domes produce high-frequency impact resonance and distinct physical drag, signalling an immediate boundary or hazard. Conversely, linear elongated ridges allow the cane tip to glide smoothly along parallel channels, establishing a continuous tactile path. The combination of plantarsensory perception and cane-tip dynamics forms a bi-modal sensory interface that experienced tactile navigators rely upon for rapid, autonomous spatial orientation.
In high-density transit environments, modern architectural engineering frequently incorporates discrete architectural elements such as individual tactile strips to provide directional orientation. From an engineering perspective, these individual units must maintain precise height tolerances (typically 4.0 mm to 5.0 mm above the surrounding substrate) and consistent pitch spacing. If the tactile profiles exhibit sub-standard height or inconsistent geometry, the mechanical signals received by both foot soles and long canes become muted or ambiguous. This degrades processing speed, increases cognitive load, and compromises pedestrian safety during navigation across busy transit platforms and complex urban intersections.
Sensory Channel | Primary Receptor / Tool | Detection Mechanism | Functional Output |
Plantarsensory Perception | Mechanoreceptors (Foot Sole) | Vertical pressure deformation & frequency modulation | Immediate pattern recognition (Dome vs. Ridge) |
Kinetic / Auditory Sweep | Long Cane Tip | Acoustic resonance, drag resistance & tip deflection | Path alignment & boundary identification |
Proprioceptive Feedback | Leg / Ankle Joint Receptors | Angular foot displacement on raised profile slopes | Level change detection & boundary stopping |
Tactile paving patterns are categorized into truncated dome warning surfaces, flat-topped hazard indicators, sinusoidal directional channels, and continuous linear guidance profiles designed to convey standardized spatial instructions.
The standardization of tactile paving patterns is fundamental to universal accessibility design. Ground surface indicators are divided into two functional categories: Warning Indicators and Directional Indicators. Warning indicators feature raised truncated domes arranged in grid patterns. Their primary engineering intent is to signal an approaching drop-off, roadway kerb, rail platform edge, or overhead hazard. The physical geometry of truncated domes—including top diameter, base diameter, top-to-base radius transition, and vertical height—is rigidly defined by global accessibility standards to ensure unambiguous tactile detection across various footwear types.
Directional indicators utilize elongated, flat-topped linear ridges or sinusoidal profiles aligned parallel to the intended direction of travel. These linear profiles guide pedestrians along safe paths through large open spaces, such as pedestrian plazas, airport terminals, and transit concourses, keeping users clear of dangerous hazards or structural obstacles. The width, spacing, and cross-sectional profile of these linear ridges are engineered to guide long cane tips and foot soles smoothly along the designated travel axis. When a user needs to change direction, directional pathways intersect with warning or decision-point tactile tiles, signaling a route node.
To ensure long-term durability and precise dimensional stability in demanding commercial installations, specifiers frequently turn to engineered surface-mounted components. Installing individual stainless steel or solid aluminum tactile strips for accessibility compliance allows architects to embed high-performance tactile guidance directly into premium flooring substrates like marble, granite, or polished concrete. These components combine robust structural integrity with refined aesthetic integration, meeting international tactile guidance standards while maintaining high resistance to heavy foot traffic, rolling luggage loads, and aggressive maintenance cleaning regimes.
Pattern Classification | Geometrical Profile | Standard Dimensions (Nominal) | Primary Functional Intent |
Blister Warning Pattern | Truncated Domes (In-line / Offset) | Base Dir: 25mm, Top Dir: 15mm, Height: 5mm | Identify kerb ramps, platform edges & street crossings |
Corduroy Hazard Pattern | Rounded Linear Ridges (Transverse) | Width: 20mm, Height: 6mm, Center Spacing: 50mm | Warn of specific hazards (stairs, ramps, level crossings) |
Directional Guidance Pattern | Flat-Topped / Sinusoidal Linear Bars | Width: 35mm, Height: 4-5mm, Bar Length: 280-450mm | Provide continuous path guidance across open spaces |
Working Principle and Installation Mechanics: Surface-mounted linear indicators function by creating continuous, high-friction tactile channels that guide long-cane tips via mechanical tracking while generating distinct plantar pressure differentials. During installation, structural substrate depth and expansion coefficient matching must be strictly controlled to prevent thermal delamination or edge lifting under heavy wheel loads.
Common issues in tactile paving stem from incorrect profile selection, poor dimensional alignment, inadequate visual contrast, rapid material degradation, and physical installation failures.
Despite stringent international building codes, field surveys of municipal transit infrastructure reveal frequent defects in tactile ground indicator installations. One primary structural failure mode is edge delamination and substrate bond failure. When surface-applied tactile tiles or retrofitted polyurethane strips are installed using sub-standard adhesives or on improperly prepared concrete substrates, moisture ingress and freeze-thaw cycles rapidly cause debonding. Loose tactile components create severe trip hazards for all pedestrians, completely defeating their intended safety function.
Another prevalent issue is improper layout geometry and spatial misalignment. Tactile pathways must follow continuous, logical routes that maintain clear clearance from structural columns, street furniture, signposts, and utility covers. In many poorly executed municipal projects, directional tactile indicators lead pedestrians directly into light poles, low-hanging obstacles, or drainage grates. Furthermore, improper termination points—where a tactile path abruptly ends in the middle of a vast plaza without a designated decision node—leave visually impaired navigators disoriented and stranded in high-traffic zones.
Material wear and loss of slip resistance also represent critical failure points. Low-grade plastic or poorly coated tactile indicators degrade rapidly under UV exposure, heavy pedestrian traffic, and mechanical cleaning machinery. As the raised tactile profile wears down below mandatory functional heights (less than 3.0 mm), plantar sensitivity drops significantly, rendering the installation undetectable. Additionally, worn surfaces lose their micro-texture, turning smooth metal or plastic domes into extremely slippery surfaces during wet weather conditions, leading to pedestrian slip and fall accidents.
Defect Type | Root Cause | Operational Risk | Engineering Mitigation Strategy |
Adhesive Debonding | Inadequate surface prep / inferior glue | Trip hazard & total functional loss | Use anchored mechanical studs / epoxy anchoring |
Spatial Misalignment | Lack of installer training / bad plan design | Pedestrian collision with hazards | Strict pre-lay survey & layout sign-off |
Surface Polish / Slipperiness | Low-grade material wear & smooth finishes | Severe slip hazards in wet conditions | Incorporate carborundum or diamond knurling |
Confusing tactile patterns occur when non-standardized tile geometries, inconsistent dome spacing, or conflicting directional orientations are installed within a single pedestrian corridor. When truncated domes intended for hazard warnings are interspersed with directional linear bars without proper transition zones, visually impaired pedestrians receive contradictory sensory inputs. This pattern confusion breaks the user's mental mapping model, forcing them to pause, re-evaluate, or abandon the tactile pathway entirely due to safety concerns.
Furthermore, field errors during tile retrofitting often result in broken pattern continuity. Joining tiles from different manufacturers with varying dome pitches (e.g., mixing a 50 mm center-to-center grid with a 67 mm center-to-center grid) creates chaotic surface textures. To a person navigating via plantar pressure or a long cane, these geometric inconsistencies mimic custom hazard signals or localized surface damage, generating unnecessary anxiety and slowing pedestrian transit flow across busy intermodal hubs.
To eliminate pattern confusion, international standards dictate precise spatial spacing and clear functional separation between warning zones and guidance routes. High-traffic architectural projects require components manufactured to ultra-tight dimensional tolerances. Modern specifiers frequently utilize heavy-duty aluminium tactile paving strip lines with carborundum inlay to deliver high-definition linear guidance. The contrasting carborundum surface composite delivers both superior visual distinction and an ultra-high friction coefficient, ensuring that directional feedback is immediately distinguishable from surrounding smooth pavement or truncated dome warning tiles.
In-line blister paving features truncated domes arranged in a precise square grid aligned parallel and perpendicular to the direction of travel. This pattern is specifically reserved for controlled pedestrian crossings, kerb ramps, and controlled road intersections. The grid alignment allows long-cane tips to pass smoothly between the rows of domes when approaching parallel to the crossing, while still presenting an unmistakable tactile warning underfoot before stepping into a vehicular roadway.
In contrast, offset blister paving features truncated domes arranged in staggered diagonal rows, where each alternate line of domes is offset by half a pitch distance. Offset blister paving is strictly specified for light rail and heavy train platform edges, unmanaged pedestrian drop-offs, and ferry terminals. The diagonal offset geometry creates continuous mechanical resistance against long-cane sweeps from any approach angle, providing an intense, unmistakable hazard alert that warns the user they are approaching an unmanaged edge with a severe drop-off.
Misapplying these two distinct blister configurations creates catastrophic safety risks. Installing in-line blister paving at train platform edges allows cane tips sweeping at certain angles to slip between dome channels without registering the impending drop-off, leading to accidental platform falls. Conversely, using offset blister paving at standard controlled pedestrian crossings sends a false "unmanaged edge" alert to experienced navigators, causing unnecessary hesitation and confusion at controlled street intersections.
Feature / Parameter | In-Line Blister Paving | Offset Blister Paving |
Dome Layout Geometry | Square orthogonal grid (Parallel/Perpendicular) | Staggered diagonal grid (45-degree offset) |
Primary Application | Controlled pedestrian kerb ramps & road crossings | Off-street train platform edges & high drop-offs |
Cane Interaction Dynamics | Allows linear channel pass-through in travel direction | Blocks cane sweeps across all directional vectors |
Regulatory Purpose | Signal crossing point location & roadway alignment | Warn of immediate, unmanaged vertical drop hazard |
Corduroy paving consists of continuous rounded ridges with semi-circular cross-sections installed transversely across the direction of approach. Its sole purpose is to signal a specific hazard that requires immediate caution, such as the top or bottom of a flight of stairs, the approach to a level rail crossing, or the top of an escalator landing. The rounded transverse ridges force the pedestrian to stop and evaluate their immediate environment before proceeding forward.
Directional guidance paving utilizes flat-topped or trapezoidal ridges running parallel to the designated line of travel. Unlike corduroy surfaces, directional guidance ridges feature wider flat tops and defined channel valleys, engineered to guide cane tips and shoe soles safely along a prescribed path across expansive spaces. They do not signal a hazard; rather, they serve as a continuous physical navigation vector connecting major origin and destination points, such as station entrances to ticket barriers.
Confusing corduroy hazard paving with directional guidance paving represents a critical design failure. If flat-topped directional bars are installed across the top of a staircase instead of transverse corduroy ridges, visually impaired pedestrians will interpret the surface as a safe continuous pathway, proceeding forward at normal speed and tumbling down the stairs. Precise profile distinction—specifically rounded transverse hazard ridges versus flat-topped longitudinal guidance bars—is critical to maintaining structural safety integrity.
Property | Corduroy Hazard Surface | Directional Guidance Surface |
Profile Shape | Semi-circular rounded ridges | Flat-topped trapezoidal / sinusoidal bars |
Orientation relative to path | Transverse (Perpendicular to travel) | Longitudinal (Parallel to travel) |
Sensory Meaning | HAZARD AHEAD: Stop, look & proceed with care | SAFE PATHWAY: Follow continuous line of travel |
Common Locations | Stair landings, ramp tops, level crossings | Open plazas, transit concourses, building corridors |
Applying tactile paving in areas without physical hazards or navigational complexity creates sensory overload, degrades pedestrian travel efficiency, increases installation costs, and reduces the perceived authority of tactile warnings.
In an effort to achieve regulatory compliance, well-intentioned architects and municipal planners sometimes over-specify tactile paving across entire pedestrian walkways where traditional architectural cues (such as wall edges, planting borders, or natural shorelines) are already present. Over-installing tactile ground surface indicators creates "sensory clutter" underfoot. When visually impaired pedestrians encounter continuous, non-essential tactile indicators, the cognitive threshold required to identify true critical hazard warnings increases, leading to sensory fatigue and reduced overall vigilance.
Furthermore, excessive placement of raised tactile profiles introduces unnecessary physical impediments for other pedestrian groups. High-density tactile dome fields create vibration issues and mechanical resistance for wheelchair users, individuals pushing strollers, travelers with rolling luggage, and elderly citizens using wheeled mobility walkers. In wet conditions, expansive fields of synthetic tactile tiles can reduce general foot traction if low-friction plastics are utilized, creating slip hazards for the general public.
From a facility lifecycle management perspective, unnecessary tactile paving increases capital expenditure and ongoing maintenance overheads. Modern engineering specifications favor targeted, minimal-impact interventions. Using precision-engineered individual surface components—such as low-profile stainless steel or aluminum individual tactile indicators—allows facility managers to create sleek, high-efficiency guidance paths that meet accessibility standards without cluttering floor space or compromising the floor's structural integrity.
Impact Category | Consequence of Over-Application | Engineering / Economic Cost |
Sensory Processing | Sensory fatigue & delayed reaction to real hazards | Increased accident probability at critical nodes |
Universal Mobility | Increased rolling resistance for mobility aids | Physical strain for wheelchair/walker users |
Facility Overhead | Unnecessary material supply & surface prep expenses | Higher initial capex & long-term cleaning costs |
Maintenance & Lifecycle Tips: To avoid cluttering architectural space, conduct a preliminary sensory audit mapping natural building shorelines before specifying tactile paths. Ensure installed metallic or composite tactile indicators are inspected semi-annually for torque retention on mechanical anchors and surface anti-slip grit integrity.
Using tactile paving with insufficient luminance contrast relative to the surrounding substrate renders the installation invisible to low-vision pedestrians, violating fundamental accessibility standards.
A common misconception in urban design is that tactile paving is exclusively used by totally blind individuals who rely entirely on touch and sound. In reality, over 80% of registered visually impaired individuals possess residual vision, relying heavily on high visual luminance contrast to identify hazard warnings and directional paths from a distance. Luminance contrast is calculated based on the light reflectance value (LRV) differential between the tactile surface and the adjacent paving material. When the LRV difference falls below required minimum thresholds (typically 30% to 50% contrast depend on light conditions), low-vision navigators can no longer spot tactile ground indicators visually.
Installing monochromatic tactile tiles—such as dark grey tactile indicators on dark charcoal granite—creates severe accessibility failures. In dim indoor lighting or wet outdoor nighttime environments, low-vision pedestrians lose the ability to detect hazard zones before stepping onto them. Conversely, specifying overly bright, reflective metallic finishes without non-glare surface treatments can create harsh specular reflection under bright sunlight or overhead spotlights, blinding low-vision users and distorting depth perception.
Achieving optimal luminance contrast requires precise material selection based on LRV testing. In modern commercial architecture, mixing contrasting materials yields optimal performance. Utilizing high-contrast black or dark carborundum infills embedded within polished silver aluminum or stainless steel housings ensures both high visual contrast against light-colored indoor floors and strong tactile grip. This dual-action approach delivers both high visual clarity for low-vision users and robust physical feedback underfoot.
Contrast Category | Substrate Material | Tactile Material Finish | Calculated LRV Differential | Compliance Status |
Inadequate Contrast | Light Grey Concrete (LRV 38) | Light Silver Plain Metal (LRV 42) | 4% LRV Delta | NON-COMPLIANT (Invisible) |
Sub-Optimal Contrast | Buff Sandstone (LRV 45) | Yellow Polyurethane (LRV 60) | 15% LRV Delta | MARGINAL (Low visibility) |
Optimal Contrast | White Marble Floor (LRV 75) | Black Carborundum Strip (LRV 12) | 63% LRV Delta | FULLY COMPLIANT (High visual signal) |
The misapplication of tactile paving results in severe physical pedestrian injuries, legal non-compliance liabilities for asset owners, high retrofit reconstruction costs, and profound social exclusion for visually impaired citizens.
The primary consequence of flawed tactile paving installations is physical harm. When a hazard warning tile is missing, misaligned, or uses an incorrect profile, a visually impaired individual may step directly off a train platform edge, fall down an unprotected flight of stairs, or walk into busy vehicular traffic. Conversely, delaminated tile edges or excessively raised profiles act as severe trip hazards for elderly pedestrians, resulting in fractures, head injuries, and severe personal injury claims against municipal authorities and private facility owners.
From a legal and financial perspective, non-compliant tactile installations expose building owners, contractors, and municipal authorities to substantial legal liabilities. Modern disability legislation across Europe, North America, and the Asia-Pacific region mandates strict adherence to universal design standards. Buildings and transit hubs failing accessibility audits risk delayed occupancy permits, substantial administrative fines, and costly court-mandated civil reconstruction projects. Replacing thousands of improperly installed tactile tiles after building commissioning incurs major expenses and causes severe service disruptions.
Beyond legal and financial ramifications, misapplied tactile paving exacts a heavy social toll. When visually impaired citizens experience confusing, dangerous, or failing tactile networks, their confidence in public infrastructure collapses. This loss of trust restricts independent mobility, forcing individuals to rely on personal assistance or avoid public spaces altogether. Ensuring absolute technical accuracy, selecting premium-grade materials, and applying strict engineering oversight during tactile paving installation is not merely a regulatory requirement—it is a fundamental commitment to safety, accessibility, and human dignity.
Impact Domain | Primary Risk Vector | Direct Consequences | Long-Term Systemic Effect |
Public Safety | False navigation signals / trip hazards | Severe falls, platform drops, traffic collisions | Increased emergency response costs & injuries |
Legal & Financial | Non-compliance with accessibility codes | Fines, withheld occupancy permits, civil lawsuits | Brand damage & financial loss |
Infrastructure Lifecycle | Premature material degradation & debonding | Costly emergency retrofits & continuous repairs | Wasted municipal & corporate capex budgets |
Social Mobility | Loss of infrastructure navigational trust | Reduced independent travel & spatial isolation | Erosion of universal urban accessibility go |
