What's the Purpose of Tactile Floor Strips, and Where Are They Typically Installed?

Tactile floor strips, also known as directional tactile ground surface indicators (TGSIs), serve the primary purpose of guiding visually impaired pedestrians along a safe path of travel while warning them of upcoming hazards, directional changes, or decision points. They are typically installed along transit platforms, public sidewalks, building entrances, stair landings, escalator approaches, and high-footfall commercial corridors.

At a Glance

Introduction to Tactile Floor Strips

Tactile floor strips are raised, linear surface profiles installed on walking surfaces to provide directional orientation and physical guidance to visually impaired pedestrians.

These specialized architectural elements form part of a broader network known as Tactile Ground Surface Indicators (TGSIs). While directional tactile strips feature long, parallel ribs aligned with the recommended path of travel, warning tactile indicators utilize truncated domes or studs to signify an impending stop or hazardous elevation change. When a visually impaired individual walks across a surface equipped with tactile strips, the raised linear bars produce distinct physical feedback through the sole of the shoe and through long-cane contact.

From an engineering perspective, tactile floor strips must balance structural resilience, slip resistance, luminance contrast, and aesthetic integration. In modern architectural projects, smooth integration with existing substrates—such as polished granite, marble, terrazzo, ceramic tile, or exposed concrete—is essential. Rather than acting as visual obstructions, modern directional tactile strips are precision-engineered building components manufactured to strict dimensional tolerances.

In commercial architecture, public transit planning, and municipal infrastructure, high-quality directional solutions like heavy-duty tactile strips ensure uninterrupted guidance over decades of continuous foot traffic and harsh environmental exposure.

Primary Purposes of Tactile Floor Strips

The main purpose of tactile floor strips is to establish continuous directional orientation and safe pedestrian navigation for individuals with visual impairments.

Directional tactile strips act as an intuitive ground-level guidance grid. By arranging parallel raised bars along the direction of travel, pedestrians using a long cane can easily track the center line of a pathway without drifting into dangerous vehicular zones, construction barriers, or structural obstacles. The continuous ridge profile allows the cane tip to glide smoothly along the valley between bars, delivering immediate, low-fatigue sensory feedback.

Furthermore, directional tactile floor strips designate designated safe routes in expansive public venues where visual landmarks are distant or absent. In airport terminals, massive train concourses, and shopping malls, open space can cause severe disorientation for blind individuals. Installing tactile strips provides a dependable physical path connecting main entry points to ticket gates, customer service desks, emergency exits, and platform boarding zones.

In addition to pathway guidance, tactile floor strips act as orientation markers when intersecting with warning studs. When a pedestrian encounters a transverse array of directional strips, it indicates a turn, route branch, or arrival at a key facility feature. For commercial developers and public sector authorities, integrating compliant tactile strips mitigates liability, satisfies statutory accessibility mandates, and delivers universal inclusivity across urban environments.

Key Types and Structural Specifications

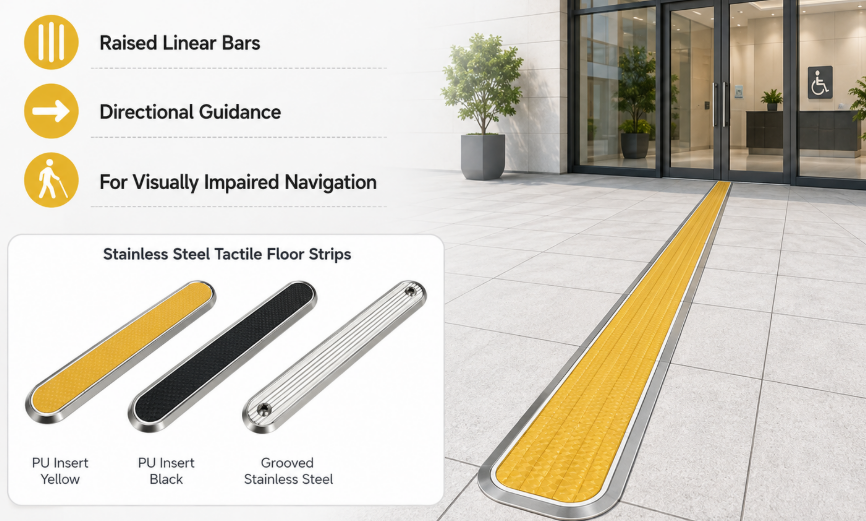

Tactile floor strips are classified into plain surface, grooved, carborundum-infill, and composite bar profiles tailored for specific indoor and outdoor applications.

Selecting the correct tactile strip profile depends on environmental conditions, foot traffic intensity, slip resistance demands, and architectural design requirements. Solid metal profiles made from 316-grade stainless steel or extruded architectural aluminum offer superior aesthetic appeal and longevity. These bars are frequently specified for high-end corporate headquarters, museum concourses, and international airport terminals.

To enhance wet-weather traction and slip safety, advanced tactile strips incorporate carborundum abrasive infills or deeply engineered surface grooves. High-friction infill profiles deliver high pendulum test values (PTV), preventing slip-and-fall incidents on wet or icy transit platforms. For specialized outdoor infrastructure where cost efficiency and rapid deployment are prioritized, high-durability polyurethane (PU) or polyolefin tactile strips offer flexible, UV-stabilized solutions.

Specifiers looking for optimal skid resistance on exposed exterior walkways frequently select engineered aluminum profiles, such as carborundum-infill tactile paving strip lines, which combine lightweight structural strength with high-traction anti-slip surface inserts.

Typical Installation Locations

Tactile floor strips are installed along transit platforms, building lobbies, pedestrian walkways, stair landings, and hazardous floor transitions.

1. Rail and Bus Transit Terminals: On train platforms, subway concourses, and bus rapid transit (BRT) stations, tactile floor strips direct passengers from ticket barriers directly to platform boarding doors. They run parallel to platform edges at a safe distance behind warning studs, ensuring orderly passenger queuing and preventing accidental platform falls.

2. Pedestrian Sidewalks and Urban Plazas: In municipal streetscapes, directional tactile strips mark safe pedestrian routes through wide plazas, leading visually impaired walkers to signalized intersections, curb ramps, and public facility entrances.

3. Commercial Office Buildings and Public Facilities: Inside civic centers, hospitals, universities, and commercial towers, tactile floor strips connect main entrance vestibules to elevators, reception desks, main staircases, and accessible restroom facilities.

4. Escalators, Moving Walkways, and Stair Approaches: Tactile strips are placed perpendicular or parallel to directional traffic leading up to mechanical conveyance systems, giving visual and physical cues prior to entering moving step surfaces.

Material Engineering and Durability Considerations

Material selection for tactile floor strips directly impacts corrosion resistance, mechanical wear, anti-slip performance, and total life-cycle cost.

In industrial accessibility engineering, material durability under repetitive impact and heavy rolling loads (such as luggage trolleys, floor scrubbers, and wheelchairs) is critical. Grade 316 stainless steel represents the gold standard for corrosive exterior environments and marine coastal zones due to its high molybdenum content, which offers exceptional resistance to pitting and crevice corrosion. Grade 304 stainless steel remains a cost-effective option for indoor commercial facilities.

Extruded aluminum alloys, such as 6063-T6 or 6061-T6, offer an exceptional strength-to-weight ratio and precise dimensional control. Anodized finish layers (15 to 25 microns) protect aluminum strips from oxidation while offering dark gray, black, or gold visual contrast options. When combined with mineral carborundum anti-slip inserts, aluminum strips achieve high structural stability and anti-slip friction ratings.

For historic preservation projects or luxury architectural interiors, solid brass tactile floor strips provide an elegant warm finish that naturally patinates over time while retaining structural integrity under foot traffic.

Installation Methods and Substrate Compatibility

Tactile floor strips are installed using surface-applied high-strength structural adhesives, stem-anchored mechanical fixings, or direct cast-in-place concrete methods.

Choosing the correct installation technique depends on whether the project involves new construction or a retrofit over existing finished flooring. For existing granite, marble, or ceramic tile floors, core-drilling substrate holes to receive stem-anchored tactile strips yields the highest pull-out resistance. High-performance epoxy or polyurethane resins anchor the bottom stem securely into the substrate, isolating the strip from thermal expansion shear stresses.

For surface-mount applications where core drilling is restricted due to post-tensioned concrete slabs or underfloor heating cables, flat-backed tactile strips are bonded using industrial structural adhesives or high-tack acrylic adhesive tapes. Surface preparation is paramount: substrates must be thoroughly cleaned, degreased, mechanical abraded, and treated with substrate primers to achieve maximum bond strength.

When casting new concrete sidewalks or public concourses, pre-formed tactile strip templates or cast-in anchor bars can be embedded directly into wet concrete, creating an integrated structural assembly that eliminates long-term adhesive bond failure risks.

Regulatory Standards and Luminance Contrast

International accessibility standards require tactile floor strips to maintain specific dimensional profiles and achieve mandatory visual luminance contrast against surrounding floor substrates.

Regulatory bodies worldwide, including the Americans with Disabilities Act (ADA), European Standard EN 17210, ISO 23599, and Australian Standard AS/NZS 1428.4.1, enforce precise geometric and optical performance criteria for tactile indicators. A core principle across all accessibility mandates is luminance contrast—the visual light reflectance value (LRV) difference between the tactile indicator and the adjacent paving material.

Luminance contrast ensures that individuals with low vision can visually detect tactile paths under ambient light conditions. The contrast is calculated using the Bowen-Erb or CIE lab formula:

LRV Contrast (%) = | (B1 - B2) / (B1 + B2) | x 100

Where B1 is the Light Reflectance Value of the floor substrate and B2 is the Light Reflectance Value of the tactile strip. Most international standards specify a minimum luminance contrast of 30% for integrated single-color tactile strips and up to 45% or 60% for discrete, multi-colored strips.

Maintenance and Operational Protocols

Routine maintenance of tactile floor strips involves periodic anti-slip testing, mechanical fastener inspection, chemical-safe cleaning, and substrate bond verification.

To maintain long-term safety and compliance, facility managers must establish a proactive maintenance protocol for all installed directional tactile floor strips. Accumulated oil, dirt, cleaning wax, or airborne industrial grime can degrade surface texture, drastically reducing slip resistance ratings and obscuring visual luminance contrast.

Maintenance Note: Cleaning teams must avoid using highly acidic or strong chlorine-based chemical cleaners on metallic tactile strips, as these agents destroy the passive chromium oxide protective layer on stainless steel and cause rapid oxidation on anodized aluminum surfaces. Use neutral pH enzymatic detergents paired with low-pressure rotary nylon brushes. Periodically conduct pendulum skid resistance testing (BS 7976-2 / AS 4586) to verify that anti-slip carborundum infills maintain a minimum Pendulum Test Value (PTV) of 36 under wet conditions. Inspect stem anchors annually to re-seal any dynamic joint hairline cracks before moisture ingress compromised the sub-floor adhesive bond.

Technical Conclusion and Industry Insights

Tactile floor strips are an essential accessibility engineering component that provides visually impaired pedestrians with safe, continuous, and autonomous directional guidance across public infrastructure.

Designing and specifying effective tactile ground surface indicators requires balancing mechanical performance, material selection, architectural aesthetics, and strict compliance with international standards like ISO 23599 and ADA guidelines. Whether deploying 316-grade stainless steel bars in coastal railway terminals or aluminum carborundum-infill strips across high-footfall airport concourses, prioritizing proper substrate preparation, structural anchoring, and luminance contrast calculation is key to long-term project success.

For architects, accessibility consultants, and engineering procurement contractors, selecting purpose-engineered, tested directional tactile solutions ensures that building assets deliver safety, statutory compliance, and architectural refinement. For detailed product engineering datasheets, CAD installation drawings, and custom manufacturing solutions, explore our comprehensive range of high-performance architectural accessibility products at YK Runyan Accessibility Solutions.
