Enhancing Safety & Accessibility with Tactile Indicator Strips

Tactile indicator strips are specialized ground surface visual and tactile warning devices engineered to assist visually impaired pedestrians in navigating urban environments safely. By providing distinct raised linear patterns, these surface-applied or embedded indicators convey directional guidance and spatial orientation across public transit hubs, commercial facilities, and municipal walkways.

At a Glance

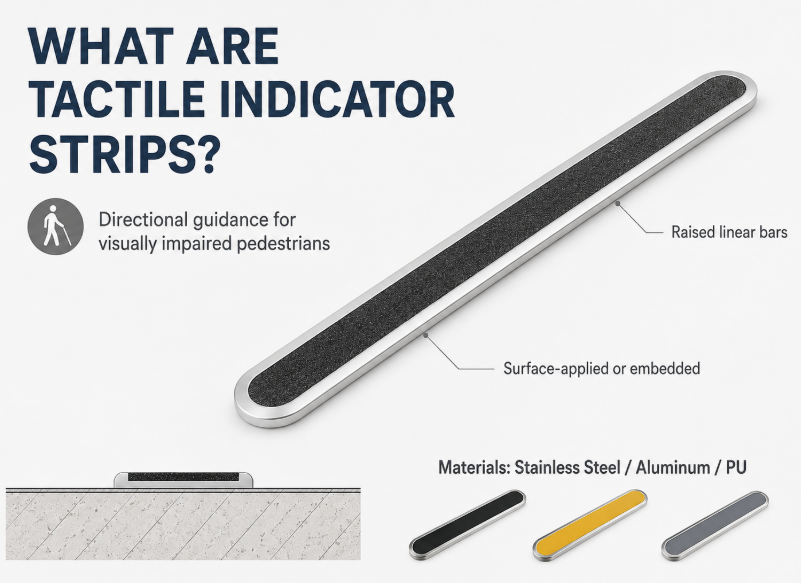

What Are Tactile Indicator Strips?

Tactile indicator strips are engineered directional ground surface indicators featuring raised parallel bars that provide continuous tactile feedback to visually impaired pedestrians.

Tactile ground surface indicators are broadly categorized into two functional classifications: warning indicators (truncated domes) and directional indicators (elongated tactile bars). Directional tactile indicator strips consist of raised, parallel-aligned longitudinal bars fixed to or embedded within walking surfaces. Their primary spatial function is to indicate a clear, hazard-free path of travel over extended distances, leading pedestrians toward transit platforms, building entrances, staircases, or pedestrian crossings. Unlike warning studs that signal an impending stop or hazard, directional strips guide continuous movement along a designated axis.

The manufacturing of professional-grade tactile indicator strips relies on precise geometric tolerances and robust material selection. High-performance models utilize marine-grade 316 stainless steel, structural anodized aluminum, or heavy-duty composite polymers filled with anti-slip aggregates. These materials are chosen specifically to withstand heavy foot traffic, mechanical cleaning equipment, aggressive chemical exposure, and severe climatic variations. The continuous linear profiles are chamfered at exact angles along the edges to prevent trip hazards for individuals using wheelchairs, strollers, or mobility aids, maintaining an optimal balance between tactile clarity and physical safety.

From a structural deployment perspective, tactile indicator strips can be integrated using discrete individual bars drilled and bonded directly into substrate materials like granite, concrete, or terrazzo. Alternatively, they can be deployed as modular surface-applied plates. Premium installations, such as utilizing high-grade Aluminium Tactile Paving Strips with Carborundum Surface, combine structural metal bases with embedded silicon carbide inlay strips to deliver maximum slip resistance and visual contrast simultaneously.

Technical & Material Specifications

How Tactile Indicator Strips Improve Accessibility

Tactile indicator strips enhance urban accessibility by generating physical sensations detectable through cane contact or shoe soles while offering strong luminance contrast for visually impaired individuals.

The core operational principle of directional tactile indicator strips lies in biomechanical and sensory feedback loops. When a cane user sweeps their long cane across a walking surface, the tip encounters the elevated linear profiles of the tactile strip. The sharp differential in surface elevation and texture generates distinct acoustic and kinetic reverberations up the shaft of the cane. Simultaneously, pedestrians walking directly over the strips perceive the raised parallel ribs through the compression of their shoe soles. This dual sensory feedback allows individuals with severe visual impairments or complete blindness to maintain a straight trajectory without drifting into vehicle lanes, construction zones, or hazardous obstacles.

In addition to physical tactile feedback, visual contrast plays an indispensable role in overall accessibility. A significant majority of individuals registered as legally blind retain varying degrees of residual light perception and visual acuity. Regulatory standards universally mandate that tactile indicators exhibit a high luminance contrast against the surrounding pavement. Standardized guidelines require a minimum of thirty percent luminance contrast for integrated tiles and fifty percent for discrete individual strips. Incorporating dark carborundum or color-anodized elements onto metallic substrates ensures that low-vision pedestrians can visually trace the path under varying ambient lighting conditions, including overcast skies and artificial evening illumination.

At our engineering facilities, we frequently evaluate why specific designs outperform others in real-world application. When engineering directional profiles, we deliberately select a 450 mm modular length with carborundum inlays. This design choice is directly driven by feedback from transit authorities across Northern and Western Europe, where outdoor installations face constant rain, ice, and heavy salt treatment. A plain metallic tactile strip, while visually appealing, can become slick when wet if it relies solely on light surface knurling. By integrating high-grit carborundum into the aluminum core, the component provides an aggressive friction profile that prevents pedestrian slips while maintaining clear directional tactile definition under heavy footwear.

Accessibility Performance Standards

Benefits of Tactile Indicator Strips

Tactile indicator strips deliver exceptional safety enhancements, full statutory accessibility compliance, long-term structural durability, and refined architectural visual integration.

1. Significant Mitigation of Pedestrian Slip and Fall Hazards

Pedestrian slip and fall incidents represent a major liability for municipal authorities and private commercial operators. Directional indicator strips manufactured with anti-slip surfaces dramatically lower trip and slip risks in transit environments. The integration of high-grade mineral aggregates, such as silicon carbide carborundum, provides an ultra-rough contact plane that grips footwear soles even when submerged in water or light grease. By defining safe, dedicated pedestrian corridors through busy concourses, tactile indicator strips channel human traffic away from hazardous zone edges, escalators, and service bays.

2. Full Compliance with Statutory Accessibility Legislation

Building owners and public infrastructure managers face strict legal mandates to ensure universal access across public spaces. Implementing compliant tactile ground indicators fulfills the legal frameworks established by international regulations, such as the Americans with Disabilities Act (ADA), the UK Equality Act, and European accessibility standard EN 301 549. Installing fully certified Tactile Strip Products mitigates legal risks, avoids municipal project handover delays, and ensures that facilities pass rigorous building code inspections prior to occupancy.

3. Extended Operational Lifespan with Minimal Lifecycle Costs

Unlike surface-painted lines or temporary adhesive tapes that wear away under foot traffic and weathering, solid metallic and composite tactile strips offer multi-decade service life. Solid 316 stainless steel and structural anodized aluminum possess extreme resistance to mechanical abrasion, impact forces, ultraviolet radiation, and chemical cleaning agents. Once anchored into stone or concrete substrates using industrial chemical adhesives, individual discrete strips remain structural components of the floor system, drastically reducing long-term replacement and maintenance expenses for facility management teams.

4. Seamless Architectural Integration and Aesthetic Appeal

Modern public architecture demands that safety and accessibility components blend harmoniously with interior and exterior finishes. Discrete tactile indicator strips offer a sophisticated aesthetic alternative to bulky, solid-block concrete tiles. Available in brushed stainless steel, warm brass, sleek black, and champagne anodized aluminum, these individual bar systems can be installed directly into high-end finishes like polished marble, terrazzo, and architectural concrete. This enables architects to maintain elevated interior design aesthetics without compromising functional accessibility standards.

5. Universal Spatial Navigation Efficiency

Tactile indicator strips establish an intuitive navigation network that benefits a wide spectrum of users beyond visually impaired individuals. In crowded, fast-paced transit environments like airport terminals and central railway stations, physical tactile lines subconsciously direct general pedestrian flow, reducing congestion and bottlenecks at entrances and exits. Furthermore, elderly individuals and travelers pushing heavy wheeled luggage utilize tactile pathways as physical guides to navigate through vast, featureless architectural spaces efficiently.

Assembly and Structural Components

Anodized surface treatment specifications (Bold Heading): To maintain the long-term visual clarity and corrosion resistance of aluminum tactile indicator strips, specify an anodization coating thickness of no less than twenty-five microns (AA25 grade). In high-traffic transit hubs exposed to winter road salts and heavy foot traffic, non-anodized or thinly coated metals will undergo rapid oxidation, leading to surface pitting and loss of visual contrast. Applying a hard-coat anodic film ensures the metal profile maintains its structural integrity and aesthetic appearance throughout decades of continuous public use.

Comprehensive Comparison of Tactile Indicator Strip Materials

Selecting the ideal material formulation for directional tactile strips requires balancing aesthetic preferences, mechanical stress expectations, environmental exposure, and lifecycle budgets. Municipal procurement projects often fail when low-cost polymers are selected for high-impact outdoor zones, leading to cracking, color fading, and premature debonding. Conversely, over-specifying heavy stainless steel in low-traffic indoor office spaces can unnecessarily inflate construction budgets.

The table below outlines a comparative analysis of the primary structural materials used in tactile strip manufacturing:

When analyzing European commercial projects, aluminum tactile profiles with carborundum inserts dominate high-end architectural spec sheets. European specifiers consistently prioritize a balance between precise geometric lines, fire-safety compliance (class A1/A2 flammability ratings required in enclosed train stations), and extreme anti-slip capability. Polymer tactile indicators, while cost-effective initially, often fail local indoor fire safety codes or degrade under heavy industrial floor scrubbing machinery. Consequently, engineered metallic strips featuring solid carborundum cores represent the overwhelming preference for modern European transit infrastructure.

Step-by-Step Substrate Installation and Anchoring Methodology

Achieving a permanent, structural bond between tactile indicator strips and host walking surfaces requires strict adherence to technical installation protocols. The vast majority of field failures stem from improper hole drilling, inadequate dust extraction, or using incorrect chemical anchor formulas.

1. Surface Layout and Grid Calibration

Before drilling, the target substrate must be laid out using precise laser alignment tools. Technicians must verify that the directional strip layout aligns perfectly with the intended axis of pedestrian travel and conforms to localized distance standards relative to platform edges, ramps, or doorways.

2. Precision Core Drilling

Using industrial diamond-tipped core bits or masonry drill bits equipped with depth-stops, drill installation holes corresponding precisely to the location, diameter, and length of the tactile strip anchoring stems. Maintaining perpendicular drill entry is vital to ensure the metal base sits completely flush with the surrounding floor.

3. Borehole Cleaning and Dust Extraction

Chemical adhesives will fail if bonding surfaces are coated in concrete dust or moisture. Clean each drilled hole thoroughly using a compressed air jet, followed by a wire borehole brush, and a final air flush. Ensure the substrate is dry and clean.

4. Adhesive Injection and Strip Insertion

Inject a measured volume of two-part structural epoxy resin or high-strength polyurethane adhesive directly into the cleaned boreholes. Insert the anchoring stems of the 450mm Length Tactile Strip Lines steadily into the filled holes, applying even downward pressure until the underside of the metallic bar rests completely flat against the floor plane.

5. Level Verification and Curing Protection

Utilize a bubble level or digital gauge across multiple installed bars to verify continuous coplanar alignment. Wipe away any excess adhesive squeeze-out immediately using appropriate cleaning solvents. Cordon off the installed zone for 12 to 24 hours to allow full chemical cross-linking before opening the pathway to public foot traffic.

Preventative maintenance and inspection guidelines (Bold Heading): Facilities management teams should perform quarterly structural inspections of all directional tactile routes. Check for any loose anchor stems, chipped carborundum surface inlays, or debris accumulation between parallel bars. Cleaning operations must utilize pH-neutral industrial detergents applied via soft-bristle mechanical scrubbers. Avoid using high-pressure jet washes exceeding 100 bar directly at the bonded seams, as extreme hydraulic pressure can undermine chemical epoxy bonds over time.

Summary

Tactile indicator strips serve as a foundational element of modern, inclusive architectural engineering. By converting complex spatial navigation into tactile and visual pathways, these components empower visually impaired individuals to traverse public transit systems, commercial centers, and civic buildings with confidence and autonomy. Specifying high-performance tactile hardware—such as 450 mm aluminum indicator bars enhanced with heavy-duty carborundum anti-slip surfaces—ensures that accessibility installations deliver exceptional slip resistance, complete legal compliance, and long-term durability. Through careful material selection, precise installation engineering, and routine maintenance, architects and facility directors can create built environments that prioritize universal safety, functional clarity, and enduring structural quality for all pedestrians.
